1060984-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1060984-1
Datasheet:
Description:

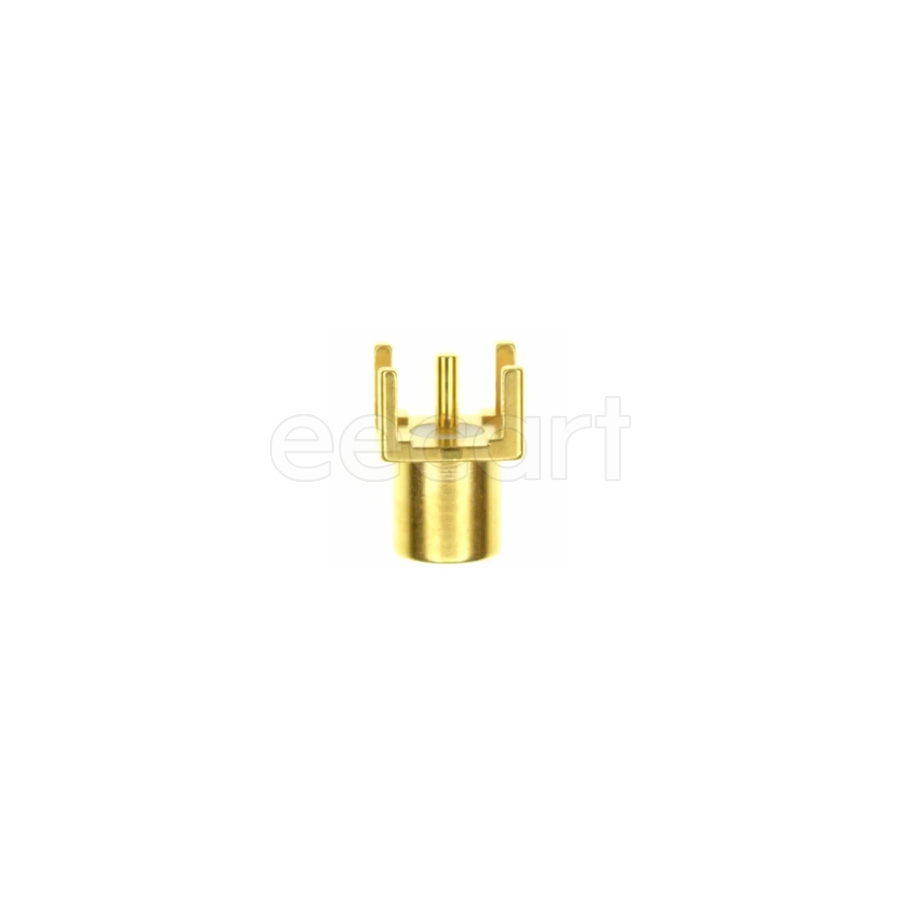

RF / Coaxial Connectors Through Hole MCX Receptacle, Female Socket 50 Ω
| Parameter | Value |
|---|---|
| Length | 6 mm |
| Termination | Solder |
| Max Operating Temperature | 165 °C |
| Min Operating Temperature | -65 °C |
| Height | 5.36 mm |
| Voltage Rating | 335 V |
| Depth | 6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Dielectric Material | TFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Copper |
| Frequency | 6 GHz |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Receptacle |
| Number of Contacts | 1 |
| ELV | Compliant |
| Body Material | Brass |
| Connector Type | Receptacle, Female Socket |
| Max Frequency | 6 GHz |
| Number of Positions | 1 |
| Insulation Material | Polytetrafluoroethylene |
| Connector Style | MCX |
| Fastening Type | Snap |
| Outside Diameter | 3.48 mm |
| Housing Color | Gold |
| Body Plating | Gold |
| PCB Mounting Orientation | Vertical |
| Tail Length | 2.92 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| RF Series | MCX |
| Contact Termination | Solder |
| Shield Termination | Solder |
| Packaging | Bulk |
Stock: 252
Distributors
pcbx
pcbxUnit Price$4.01731
Ext.Price$4.01731
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.01731 | $4.01731 |
| 10 | $3.41716 | $34.17160 |
| 25 | $3.24708 | $81.17700 |
| 50 | $3.08544 | $154.27200 |
| 100 | $2.78450 | $278.45000 |
| 300 | $2.73752 | $821.25600 |
| 500 | $2.69132 | $1345.66000 |
| 1000 | $2.14673 | $2146.73000 |
